To order:
Measure beam length between uprights (left to right)
Measure beam depth overall (front to back)
Measure depth between beam steps (front to back)

  Beam Length         Use
  96"                         Two 46"
  108"                       Two 52"
  120"                       Two 58"
  144"                       Three 46"

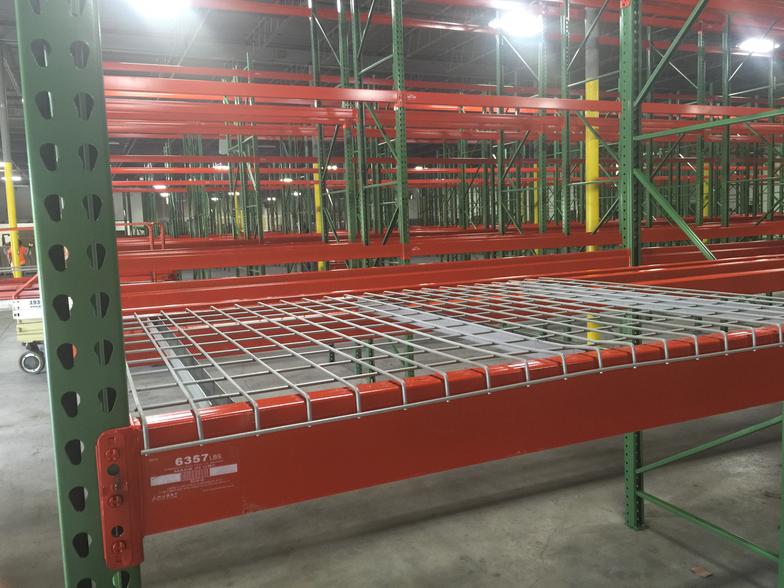

D4246AA3A1 - Nashville Wire | Wire Mesh Decking 42'' Deep x 46'' Wide
Wire Mesh Decking for Step Beams
42'' Deep x 46'' Wide wire decks for standard step beams are the most popular size of wire decks.  The most common pallet rack upright depth is 42'' deep.  The most common pallet rack beam length is 96'' or 8' long.  Two 42'' deep x 46'' wide wire decks are used on an 8' long pallet rack shelf.



Nashville Wire - Wire Decks 42'' deep x 46'' wide 2,700lbs capacity
Depth Inches
Width Inches
Capacity Lbs
Color Finish
Brand
Support Channels
Mesh Pattern
Wire Diameter
Weight Lbs
Spec Sheet
​42'' Deep
46'' Wide
2,700lbs Capacity
Powder Coat Grey
Nashville Wire

2.5'' x 4''
6 Gauge
19.62lbs
  Product Specifications
42'' Deep x 46'' Wide Wire Decks for 8' long step beams
Item Number#:

Brand:

Size:

Ships From:

Freight:

Lead Time:
D4246AA3A1

Nashville Wire

42'' Deep x 46'' Wide

Liberty, NC

Class 70 | FOB 27407

Ships 1-3 Days after Order

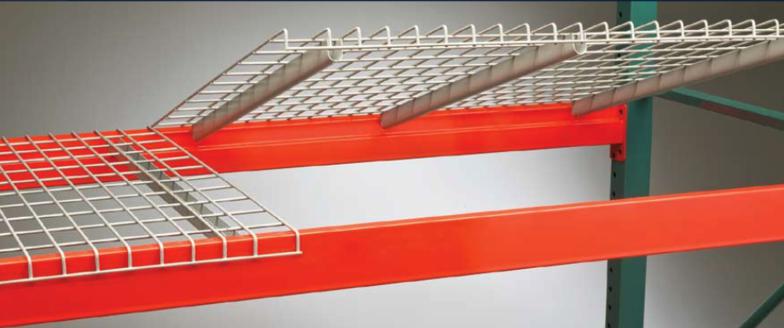

Wire Mesh Decking
Strong, 2-1/2" x 4", 6-gauge wire, gray baked enamel finished wire decking features welded construction and 13 gauge channel supports. Unlike wood or metal decking, wire permits light, air and sprinkler penetration; allows a clear view of upper tiers; and minimizes dust and debris accumulation. The installation is easy — simply drop into place over beams. Use with beams that have 1-1/2" or 1-5/8" step. 2700 lb. capacity.
2209 Patterson Ct.  Greensboro, NC 27407
Pallet Rack Wire Decking in Stock in the Following Locations!
Size

36'' Deep x 46'' Wide
36'' Deep x 52'' Wide

42'' Deep x 46'' Wide
42'' Deep x 52'' Wide

48'' Deep x 46'' Wide
48'' Deep x 52'' Wide
Part No.

D3646AA3B1
D3652AA3B1

D4246AA3A1
D4252AA3A1

D4846AA3C1
D4852BA3A1
Capacity

2,700lbs
2,700lbs

2,700lbs
2,700lbs

2,500lbs
2,500lbs
Weight

16lbs
18lbs

20lbs
22lbs

24lbs
27lbs
Other Popular Sizes In Stock - Liberty, NC
